PI's Core Technologies: Breaking New Ground

PI Ceramic offers a wealth of experience in the manufacturing of piezoceramic materials, components, and actuators. The piezoceramic materials can be adapted individually to perfectly fit the later use of the piezo components.

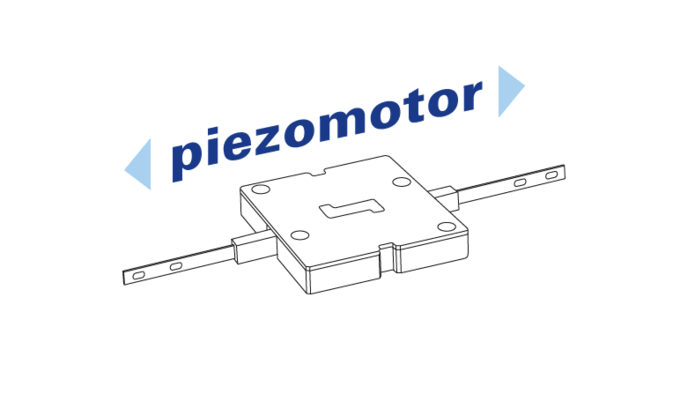

Depending on the configuration and control, piezoceramic actuators can be used to create translational motions or as motors with a virtually unlimited travel range. The choice of drive depends on the requirements of the application.

Rotating electric motors such as DC or stepper motors are used in connection with screw or worm drives. Stepper motor systems with high-resolution encoders can perform minimum incremental motions of 10 nm with high reliability and repeatability.

In a parallel-kinematic, multi-axis system, all actuators act directly on a single moving platform. This means that all axes can be designed with identical dynamic properties, thus reducing the moved mass considerably.

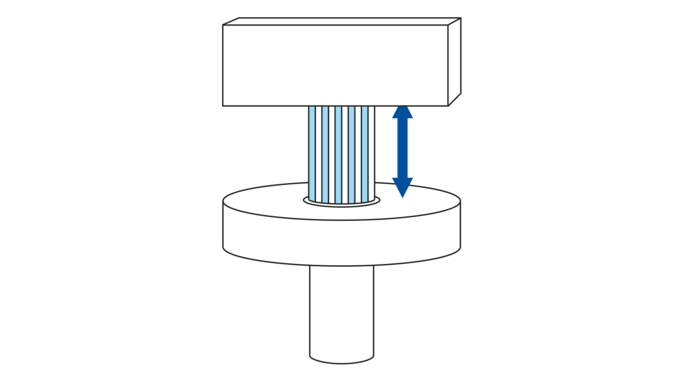

The linearity and repeatability achieved are not possible without highest-resolution measuring devices. Accuracies in the range of a few nanometers and below require a position measurement method that can also detect motion in this range.

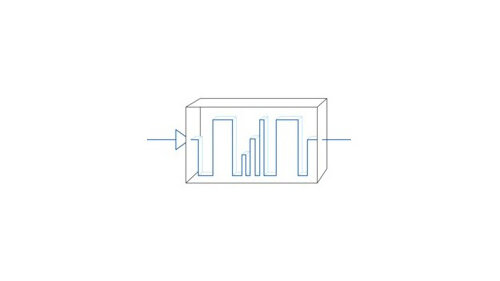

Fast settling or extremely smooth low speed motion, high positional stability, high resolution and high dynamics – the requirements placed on piezo systems vary greatly and need drivers and controllers with a high degree of flexibility.

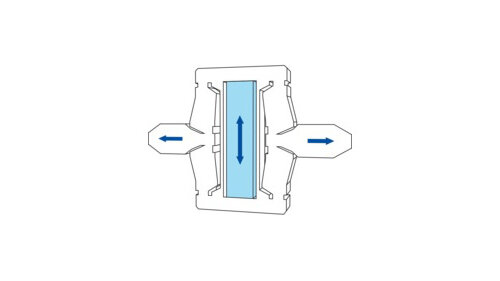

Flexure joints, mechanical guide components or magnetic bearings? Which kind of guiding system PI uses in its products depends on parameters such as travel range, required precision, load, lifetime, and ambient conditions.

Careful handling, adequate premises: PI does not only have the necessary equipment for the qualification of materials, components and final products, but also has many years of experience with regard to HV und UHV positioning systems.
