Low-Cost Motion-Amplified Piezo Actuator

Piezo Flexure Actuators Overview

Motorized Linear Actuators Overview

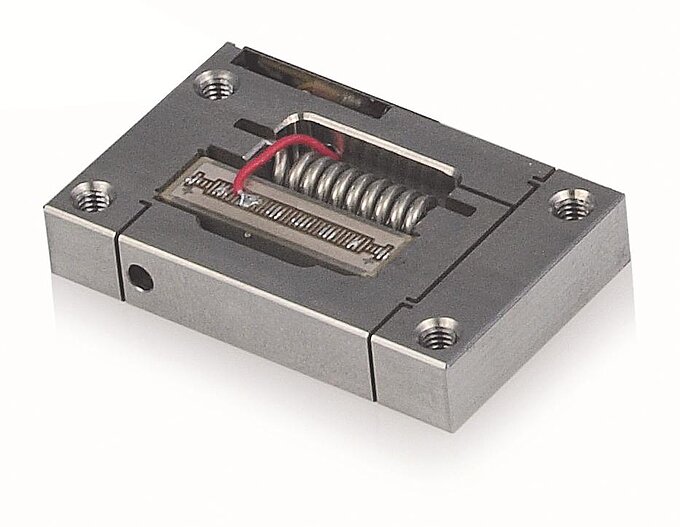

Weighing in at only 4 grams, the new P-604 PiezoMove® linear actuator provides long-travel in a small package at low cost.

Applications
Providing a large displacement of 300µm in a very small package of only 20x13x4mm, the actuator was optimized for OEM instrumentation applications in fields such as precision-optics, life-sciences, medical design, bio/nano-technology and microfluidics / nano dispensers.

Piezo Basics

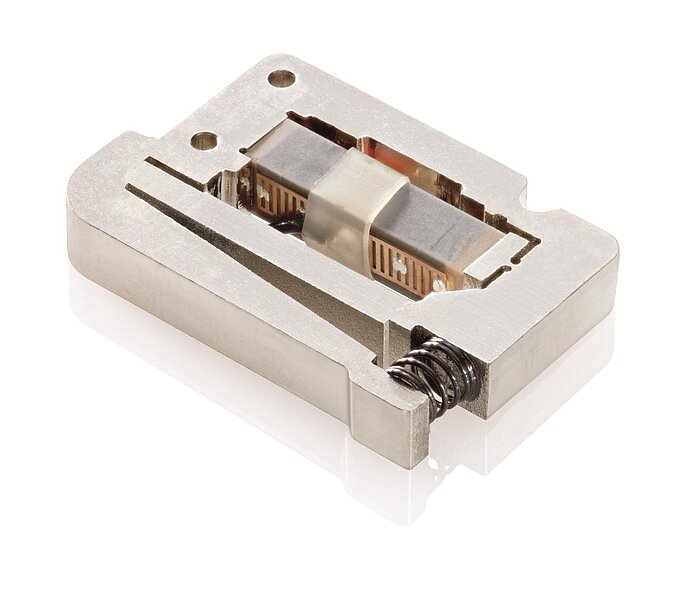

At the heart of the motion-amplifying flexure design is a multilayer piezo element, of the same proprietary construction as the ones used on the Mars Rover for their extreme reliability and lifetime of 100 billion cycles.

Piezo-ceramic drives directly convert electrical energy into mechanical motion. They are energy efficient and provide very fast response and virtually unlimited positional resolution.

Custom Designs
PI has a long history of working with instrumentation manufacturers and can easily modify existing designs or completely customize piezo devices to fit the exact requirements of the application.

 Specifications, Drawings, Order Info
 PDF Datasheet

This is a legacy product that may have limited availability or may have been replaced. Ask a PI engineer for an equivalent new model.
