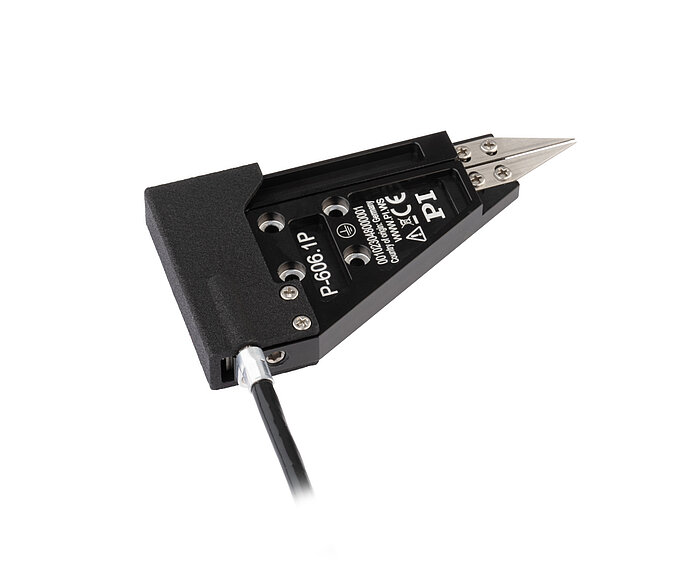

P-606 Micro-Gripper for Photonics and Micro-Optic Assembly
The P-606.1P piezoelectric micro-gripper is a compact gripping solution designed specifically for handling fibers, FAUs, micro-optics, and other delicate photonic components during automated alignment and assembly processes.

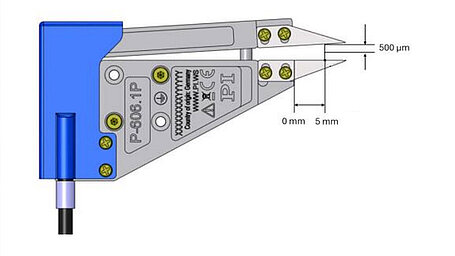

The gripper provides 500µm of jaw travel, opening widths up to 1.9mm, and up to 4N (0.9lb) of gripping force, enabling secure handling of small components without sacrificing precision or stability.
Anyone involved in active optical alignment knows that achieving nanometer-level positioning accuracy is only part of the challenge. Once a component is located, it must remain mechanically stable while the motion system performs scanning, optimization, bonding, or inspection routines. Even small amounts of compliance or unwanted motion at the gripper can directly impact alignment accuracy and process repeatability.
The P-606.1P was developed to address exactly this problem. Its monolithic flexure-guided design provides exceptionally high stiffness and repeatability while eliminating friction, backlash, and wear associated with conventional bearing-based mechanisms. Combined with piezoelectric actuation and integrated force sensing, the gripper delivers precise, controlled handling of fragile optical components in demanding automated production environments.
Key Specifications
| Parameter | P-606.1P |
| Jaw travel | 0 - 500µm |
| Opening width | 0.5 - 1.9mm |
| Clamping force | 0 - 4N |
| Force feedback | Integrated piezoresistive sensor |
Guidance | Monolithic flexure |
| Actuation | Piezoelectric |
| Jaw configuration | Modular |
| Motion | Unsymmetrical |

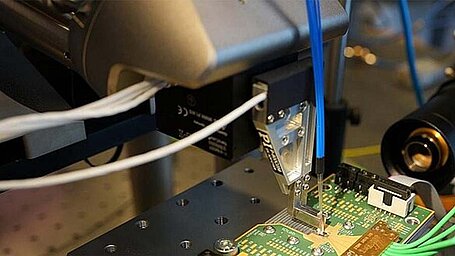

Designed for Active Alignment Processes
During active alignment, components are often moved through complex optimization routines involving rapid scanning and frequent positioning corrections. Maintaining a rigid mechanical connection between the gripper and the optical component is critical for achieving fast convergence and repeatable results.
The P-606.1P's flexure-based architecture provides high structural rigidity while the piezo actuator enables fast, precise jaw motion. The result is a gripping solution that integrates naturally into high-performance photonics alignment systems without becoming a limiting factor in system dynamics.

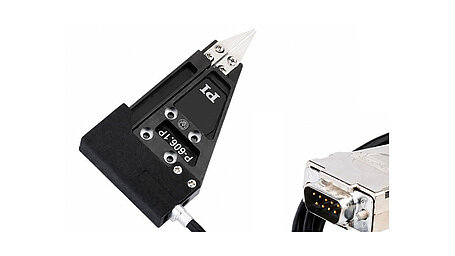

Integrated Force Feedback for Sensitive Components
Delicate optical assemblies require enough force to ensure secure retention, yet excessive clamping force can damage fibers, lenses, ferrules, or other precision components.
To address this challenge, the P-606.1P incorporates an integrated piezoresistive force sensor that continuously monitors gripping force. This direct force feedback allows process engineers to optimize grip strength for each component type and maintain consistent handling conditions across automated production runs.
The gripper can generate up to 4N (0.9lb) of clamping force, providing secure retention of components and fixtures while maintaining precise force control.
Friction-Free Flexure Design
At the core of the P-606.1P is a monolithic flexure mechanism that guides jaw motion without conventional bearings. Because the flexures operate without rolling or sliding contacts, the motion is completely friction-free and free from backlash, mechanical play or wear. This design contributes to long service life, high repeatability, and stable operation in applications where positioning precision and reliability are critical.

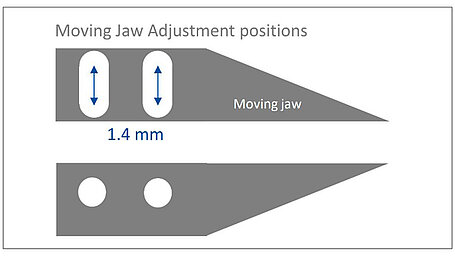

Adaptable Through Interchangeable Jaws
Photonics manufacturing often involves components with significantly different geometries and handling requirements. To support a wide range of applications, the P-606.1P features interchangeable jaws that can be optimized for specific component shapes and process needs.
Depending on the jaw configuration, the gripper supports opening widths from 0.5mm to 1.9mm, making it suitable for handling a variety of optical and micro-mechanical components.
Typical Applications
The P-606.1P is designed for precision handling tasks in photonics manufacturing, micro-assembly, and automated inspection systems, including:
- Fiber positioning and active alignment
- Fiber array unit (FAU) assembly
- Lens and micro-optic alignment
- Silicon photonics packaging
- Camera and imaging module assembly
- Optical probing and inspection
- Precision pick-and-place operations
- Microelectronics assembly
- General micromanipulation tasks
Enabling a Complete Alignment Workflow
By combining gripping, force measurement, and high mechanical stiffness in a compact package, the P-606.1P extends the capabilities of automated photonics alignment systems beyond positioning alone.
Components can be picked, transported, actively aligned, held during bonding or assembly operations, and released with controlled force, all while maintaining the stability required for modern high-throughput photonics manufacturing.
For engineers building automated optical assembly systems, the P-606.1P provides a practical solution to one of the most overlooked aspects of precision alignment: securely holding the component without compromising the performance of the positioning system itself.
