AB-65 Adapter Bracket

For Vertical Mounting of Linear and Rotation Stages

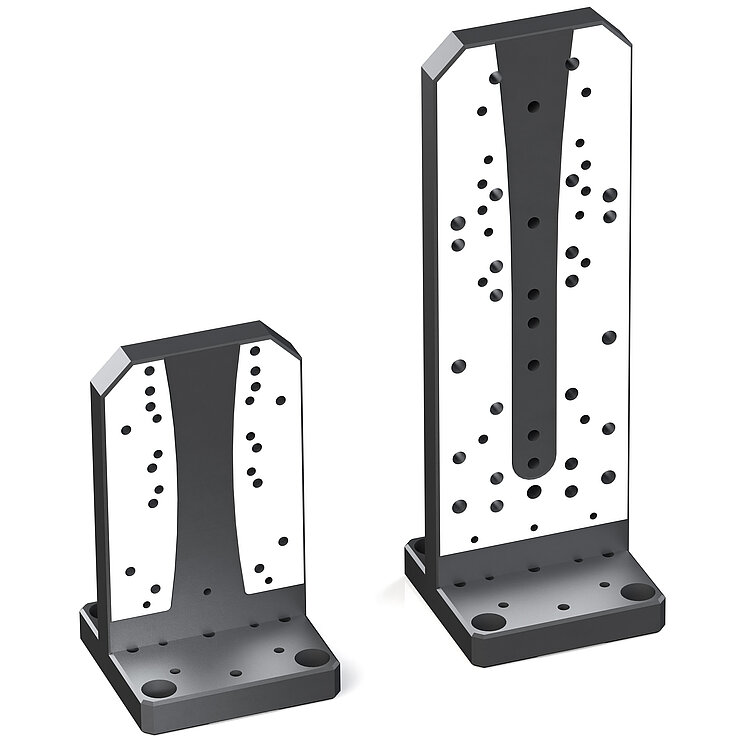

AB-65 L (61009075) and AB-65 XL (61009076)

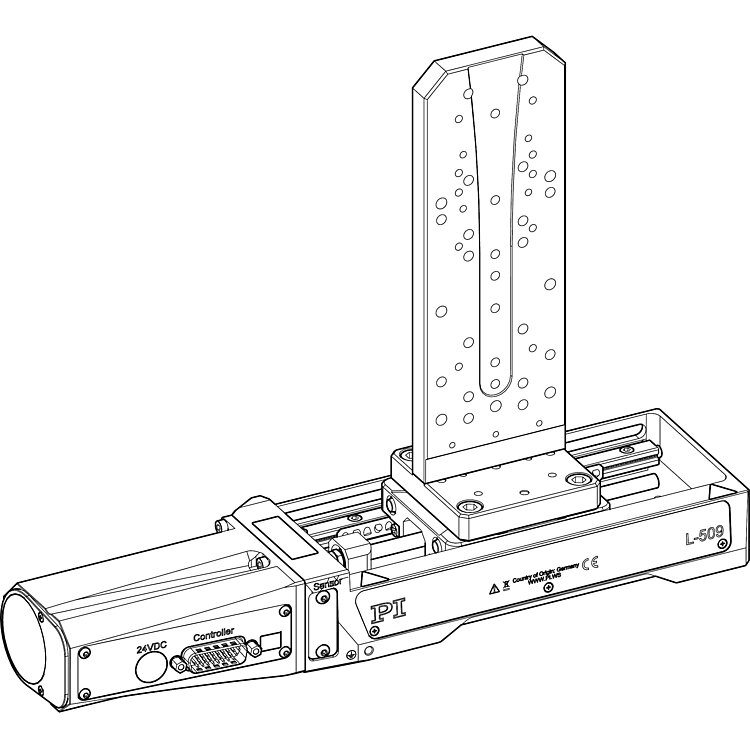

The L-509.10DG10 precision linear stage was mounted on an AB-65 XL adapter bracket (61009076) (positioner on adapter bracket).

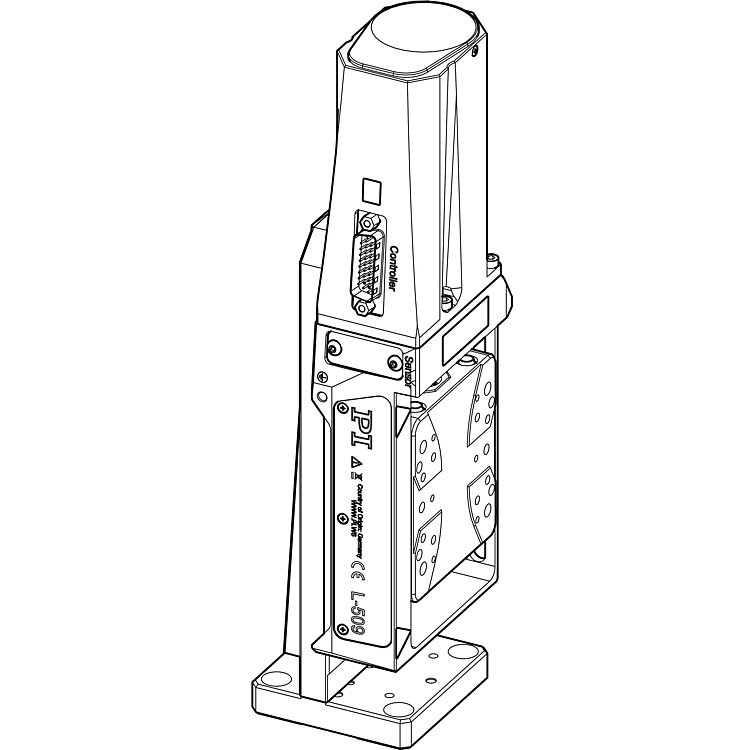

The AB-65 XL adapter bracket (61009076) was mounted on an L-509.10DG10 precision linear stage (adapter bracket on positioner)

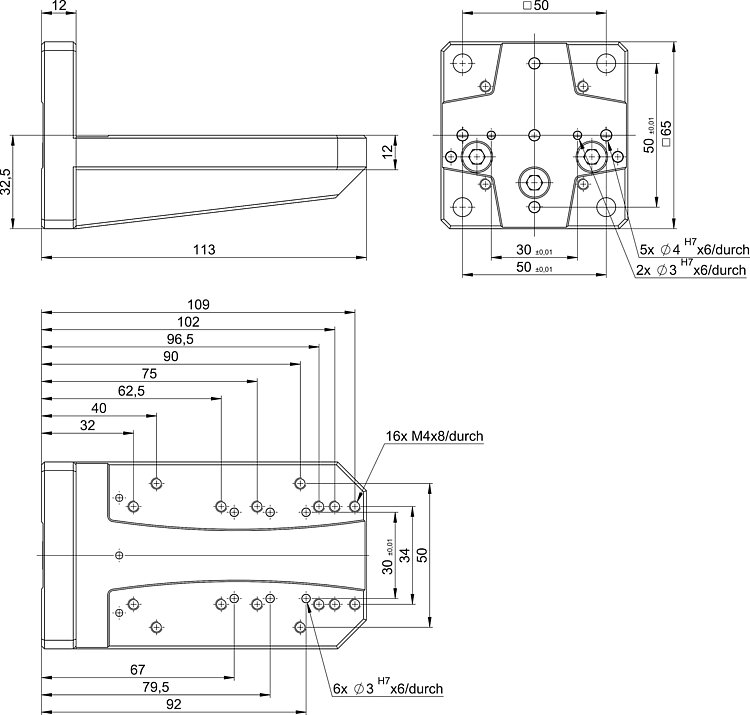

61009075: AB-65 L

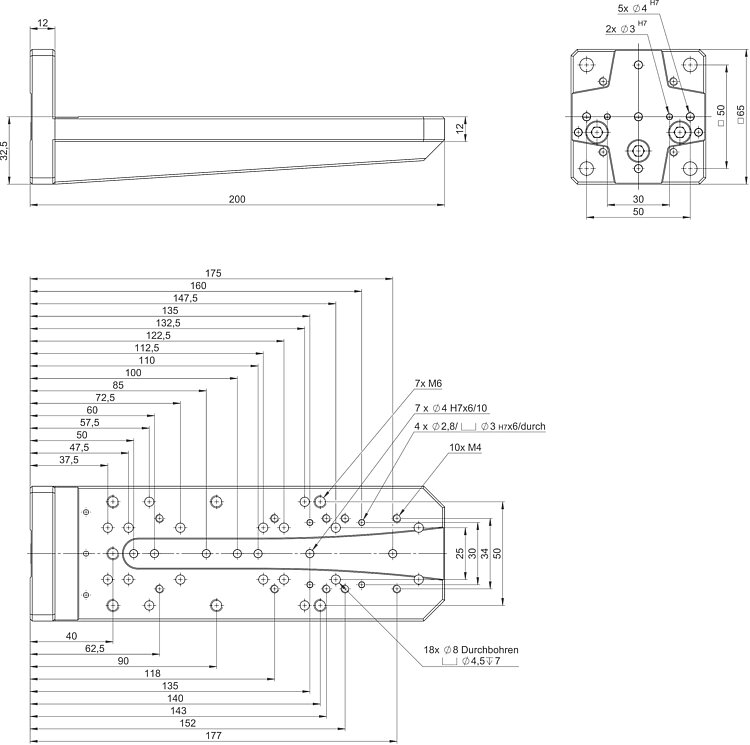

61009076: AB-65 XL

The adapter is compatible with selected linear or rotation stages as well as goniometers.

Vacuum-compatible product variants to 10^-9 hPa available.

Adapter bracket on positioner: The adapter bracket can be mounted on the moveable translation stage of the positioner and is then moved with the positioner accordingly.
Positioner on adapter bracket: The positioner can be mounted on the adapter bracket, the stage moves relatively to it.

Datasheet

Version / Date

2020-09-16

pdf - 2 MB

Version / Date

2020-09-16

pdf - 2 MB

Version / Date

2021-01-14

pdf - 658 KB

	Unit	61009075	61009076	6100V075
Mass	kg	0.38	0.58	0.38
Material		Aluminum, anodized	Aluminum, anodized	Aluminum, uncoated
Vacuum compatibility		–	–	to 10^-9 hPa

Compatible	61009075 / 6100V075 (adapter bracket on positioner)	61009075 / 6100V075 (positioner on adapter bracket)	61009076 (adapter bracket on positioner)	61009076 (positioner on adapter bracket)
Linear stages
L-310	X	–	X	–
L-509	X	–	X	X
L-511	X	–	X	–
HPS-170	X	–	X	–
LMS-180	X	–	X	–
LS-180	X	–	X	–
VT-80	X	X*	X	X**
Rotation stages
L-611	X	–	X	X
RS-40	–	X	–	–
DT-80	–	X	–	–
Goniometers
WT-85	X	–	X	X
WT-90	X	X	X	X
WT-100	–	–	–	X
WT-120	X	–	X	–
