P-007.00
PICA Stack Piezo Actuator, 5 µm Travel Range, OD 7 mm × L 8 mm
P-007 – P-056 PICA Stack Piezo Actuators
High Forces, High Displacement, Flexible Production
- Travel ranges to 300 µm
- High load capacity
- Force generation up to 80 kN
- Extreme reliability: >109 cycles

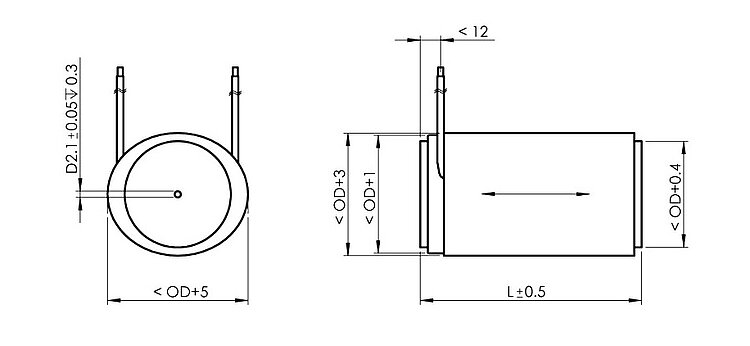

PICA Stack, dimensions in mm. L, OD see data table

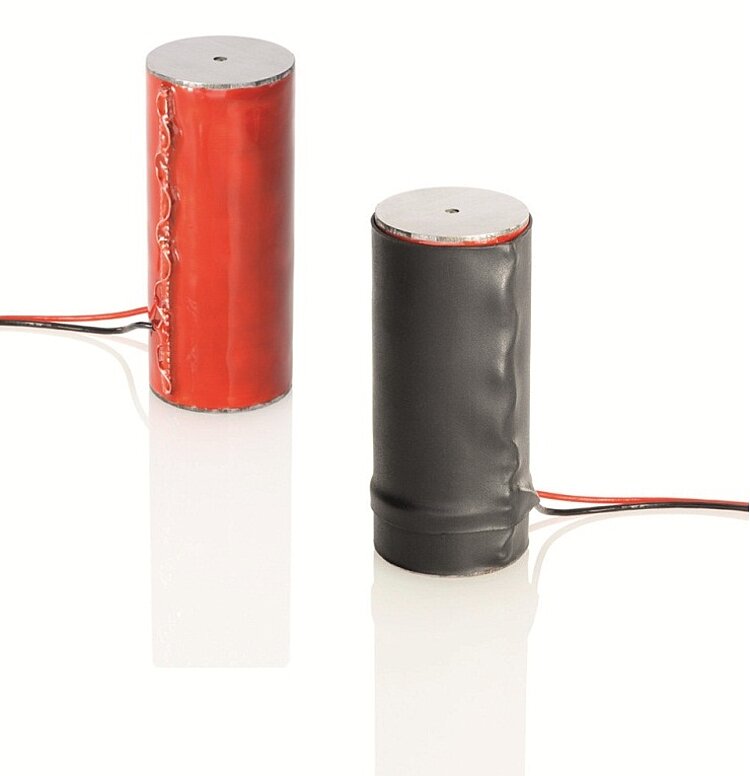

Custom actuator with special tip and applied SGS sensors. The protective polymer layer can be dyed in different colors. Standard versions are delivered with stranded wires and are covered in black.
P-007 – P-056 PICA Stack Piezo Actuators
Product Description
Specifications
Downloads
Quote / Order
Stacked piezo linear actuator
Operating voltage 0 to 1000 V. Long lifetime without derating. High specific displacement. High forces. Sub-nanometer resolution, µs response. Operating temperature range -20 to 85 °C
Available options
- SGS sensors for positional stability
- PZT ceramic material
- Operating voltage range, displacement, layer thickness
- Load capacity, force generation
- Geometric shapes: round, rectangular
- Mechanical interfaces: flat, spherical, metal, ceramic, glass, sapphire, etc.
- Integrated piezoelectric detector layers
- Special high / low temperature versions, temperature sensor
- Vacuum-compatible and non-magnetic versions
- Extra-tight length tolerances
Fields of application
Industry and research. For high-load positioning, precision mechanics / -machining, switches
Specifications
Specifications
Displacement | Diameter OD | Length L | Blocking force | Stiffness | Electrical capacitance | Resonant frequency | |
|---|---|---|---|---|---|---|---|
µm | mm | mm | N | N/µm | nF | kHz | |
P-007.00 | 5 | 7 | 8 | 650 | 130 | 11 | 126 |
P-007.10 | 15 | 7 | 17 | 850 | 59 | 33 | 59 |
P-007.20 | 30 | 7 | 29 | 1000 | 35 | 64 | 36 |
P-007.40 | 60 | 7 | 54 | 1150 | 19 | 130 | 20 |
P-010.00 | 5 | 10 | 8 | 1400 | 270 | 21 | 126 |
P-010.10 | 15 | 10 | 17 | 1800 | 120 | 64 | 59 |
P-010.20 | 30 | 10 | 30 | 2100 | 71 | 130 | 35 |
P-010.40 | 60 | 10 | 56 | 2200 | 38 | 260 | 20 |
P-010.80 | 120 | 10 | 107 | 2400 | 20 | 510 | 10 |
P-016.10 | 15 | 16 | 17 | 4600 | 320 | 180 | 59 |
P-016.20 | 30 | 16 | 29 | 5500 | 190 | 340 | 36 |
P-016.40 | 60 | 16 | 54 | 6000 | 100 | 680 | 20 |
P-016.80 | 120 | 16 | 101 | 6500 | 54 | 1300 | 11 |
P-016.90 | 180 | 16 | 150 | 6500 | 36 | 2000 | 7 |
P-025.10 | 15 | 25 | 18 | 11000 | 740 | 400 | 56 |
P-025.20 | 30 | 25 | 30 | 13000 | 440 | 820 | 35 |
P-025.40 | 60 | 25 | 53 | 15000 | 250 | 1700 | 21 |
P-025.80 | 120 | 25 | 101 | 16000 | 130 | 3400 | 11 |
P-025.90 | 180 | 25 | 149 | 16000 | 89 | 5100 | 7 |
P-025.150 | 250 | 25 | 204 | 16000 | 65 | 7100 | 5 |
P-025.200 | 300 | 25 | 244 | 16000 | 54 | 8500 | 5 |
P-035.10 | 15 | 35 | 20 | 20000 | 1300 | 700 | 51 |
P-035.20 | 30 | 35 | 32 | 24000 | 810 | 1600 | 33 |
P-035.40 | 60 | 35 | 57 | 28000 | 460 | 3300 | 19 |
P-035.80 | 120 | 35 | 104 | 30000 | 250 | 6700 | 11 |
P-035.90 | 180 | 35 | 153 | 31000 | 170 | 10000 | 7 |
P-045.20 | 30 | 45 | 33 | 39000 | 1300 | 2800 | 32 |
P-045.40 | 60 | 45 | 58 | 44000 | 740 | 5700 | 19 |
P-045.80 | 120 | 45 | 105 | 49000 | 410 | 11000 | 10 |
P-045.90 | 180 | 45 | 154 | 50000 | 280 | 17000 | 7 |
P-050.20 | 30 | 50 | 33 | 48000 | 1600 | 3400 | 32 |
P-050.40 | 60 | 50 | 58 | 55000 | 910 | 7000 | 19 |
P-050.80 | 120 | 50 | 105 | 60000 | 500 | 14000 | 10 |
P-050.90 | 180 | 50 | 154 | 61000 | 340 | 22000 | 7 |
P-056.20 | 30 | 56 | 33 | 60000 | 2000 | 4300 | 32 |
P-056.40 | 60 | 56 | 58 | 66000 | 1100 | 8900 | 19 |
P-056.80 | 120 | 56 | 105 | 76000 | 630 | 18000 | 10 |
P-056.90 | 180 | 56 | 154 | 78000 | 430 | 27000 | 7 |
Downloads
Datasheet
Documentation
Documentation
User Manual PZ138
PICA Piezo Actuators: P-007, P-010, P-016, P-025, P-035, P-045, P-050, P-056 PICA Stack/Power/Thru Customized Products
Version / Date
2014-12-10
pdf - 922 KB
Version / Date
2014-12-10
pdf - 923 KB
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
P-007.10
PICA Stack Piezo Actuator, 15 µm Travel Range, OD 7 mm × L 17 mm
P-007.20
PICA Stack Piezo Actuator, 30 µm Travel Range, OD 7 mm × L 29 mm
P-007.40
PICA Stack Piezo Actuator, 60 µm Travel Range, OD 7 mm × L 54 mm
P-010.00
PICA Stack Piezo Actuator, 5 µm Travel Range, OD 10 mm × L 8 mm
P-010.10
PICA Stack Piezo Actuator, 15 µm Travel Range, OD 10 mm × L 17 mm
P-010.20
PICA Stack Piezo Actuator, 30 µm Travel Range, OD 10 mm × L 30 mm
P-010.40
PICA Stack Piezo Actuator, 60 µm Travel Range, OD 10 mm × L 56 mm
P-010.80
PICA Stack Piezo Actuator, 120 µm Travel Range, OD 10 mm × L 107 mm
P-016.10
PICA Stack Piezo Actuator, 15 µm Travel Range, OD 16 mm × L 17 mm
P-016.20
PICA Stack Piezo Actuator, 30 µm Travel Range, OD 16 mm × L 29 mm
P-016.40
PICA Stack Piezo Actuator, 60 µm Travel Range, OD 16 mm × L 54 mm
P-016.80
PICA Stack Piezo Actuator, 120 µm Travel Range, OD 16 mm × L 101 mm
P-016.90
PICA Stack Piezo Actuator, 180 µm Travel Range, OD 16 mm × L 150 mm
P-025.10
PICA Stack Piezo Actuator, 15 µm Travel Range, OD 25 mm × L 18 mm
P-025.20
PICA Stack Piezo Actuator, 30 µm Travel Range, OD 25 mm × L 30 mm
P-025.40
PICA Stack Piezo Actuator, 60 µm Travel Range, OD 25 mm × L 53 mm
P-025.80
PICA Stack Piezo Actuator, 120 µm Travel Range, OD 25 mm × L 101 mm
P-025.90
PICA Stack Piezo Actuator, 180 µm Travel Range, OD 25 mm × L 149 mm
P-025.150
PICA Stack Piezo Actuator, 250 µm Travel Range, OD 25 mm × L 204 mm
P-025.200
PICA Stack Piezo Actuator, 300 µm Travel Range, OD 25 mm × L 244 mm
P-035.10
PICA Stack Piezo Actuator, 15 µm Travel Range, OD 35 mm × L 20 mm
P-035.20
PICA Stack Piezo Actuator, 30 µm Travel Range, OD 35 mm × L 32 mm
P-035.40
PICA Stack Piezo Actuator, 60 µm Travel Range, OD 35 mm × L 57 mm
P-035.80
PICA Stack Piezo Actuator, 120 µm Travel Range, OD 35 mm × L 104 mm
P-035.90
PICA Stack Piezo Actuator, 180 µm Travel Range, OD 35 mm × L 153 mm
P-045.20
PICA Stack Piezo Actuator, 30 µm Travel Range, OD 45 mm × L 33 mm
P-045.40
PICA Stack Piezo Actuator, 60 µm Travel Range, OD 45 mm × L 58 mm
P-045.80
PICA Stack Piezo Actuator, 120 µm Travel Range, OD 45 mm × L 105 mm
P-045.90
PICA Stack Piezo Actuator, 180 µm Travel Range, OD 45 mm × L 154 mm
P-050.20
PICA Stack Piezo Actuator, 30 µm Travel Range, OD 50 mm × L 33 mm
P-050.40
PICA Stack Piezo Actuator, 60 µm Travel Range, OD 50 mm × L 58 mm
P-050.80
PICA Stack Piezo Actuator, 120 µm Travel Range, OD 50 mm × L 105 mm
P-050.90
PICA Stack Piezo Actuator, 180 µm Travel Range, OD 50 mm × L 154 mm
P-056.20
PICA Stack Piezo Actuator, 30 µm Travel Range, OD 56 mm × L 33 mm
P-056.40
PICA Stack Piezo Actuator, 60 µm Travel Range, OD 56 mm × L 58 mm
P-056.80
PICA Stack Piezo Actuator, 120 µm Travel Range, OD 56 mm × L 105 mm
P-056.90
PICA Stack Piezo Actuator, 180 µm Travel Range, OD 56 mm × L 154 mm
Custom designs or different specifications on request.
