C-885 PIMotionMaster

Rack with Processor and Interface Module for Modular Multi-Axis Controller System

Easy configuration and startup
Modular design for versatile expansion
Efficient communication with the controller modules
Greatly reduced wiring effort
Saves space and costs

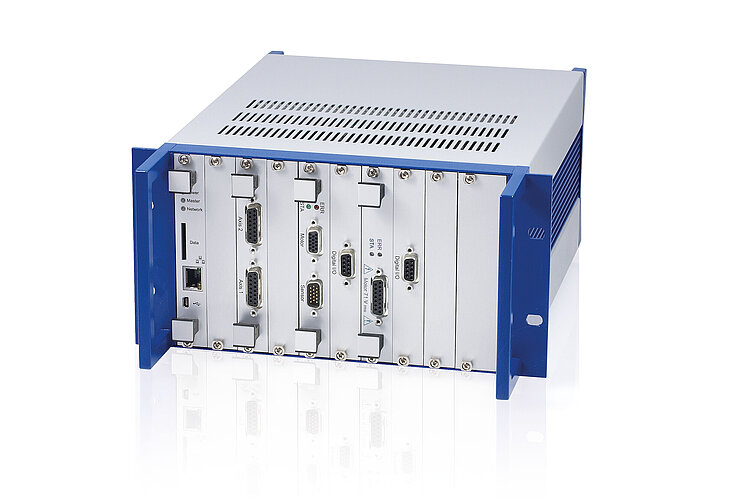

Plug-and-play installation of the controller modules in the C-885 PIMotionMaster. The processor and interface module communicates with the PIMikroMove software and with the controller modules. It detects the available controller module type automatically. Grouping the controller modules in one housing ensures internal communication and reduces the wiring effort because of the common power adapter and external communication via a single USB or Ethernet interface.

The system is easily scalable. An additional controller module can be inserted into any free slot and expands the overall system by the corresponding functions. Optional digital inputs and outputs can be installed for every controller module.

C-863.20C885: Motion controller module for DC motors and brushless DC motors

C-867.10C885: Motion controller module for PILine® piezo motors of the performance class 1 and 2

E-861.11C885: Motion controller module for NEXACT® piezo motors

E-873.10C885: Motion controller module for Q‑Motion® piezoelectric inertia drives

C-663.12C885: Motion controller module for 2-phase stepper motors

C-891.11C885: Motion controller module for PIMag® magnetic direct drives

Download datasheet specifications

Datasheet

Version / Date

2020-12-15

pdf - 221 KB

Version / Date

2020-12-15

pdf - 222 KB

Version / Date

2021-01-26

pdf - 264 KB

Download

	C-885.R1	C-885.R4
Function	9.5" chassis for C-885 PIMotionMaster	9.5" chassis for C-885 PIMotionMaster
Number of card slots	1 C-885.Mx module (required) 4 controller modules (max.)	1 C-885.Mx module (required) 8 controller modules (max.)
Dimensions	269.04 mm × 133.14 mm × 349.5 mm (incl. handles)	269.04 mm × 133.14 mm × 349.5 mm (incl. handles)
Operating voltage	24 V DC from external power adapter*	24 V DC from external power adapter*
Supply voltage for controller modules	24 V DC	24 V DC
Current consumption, max.	32 A	32 A
Mass without modules	3.2 kg	3.5 kg
Operating temperature range	10 to 40 °C	10 to 40 °C

	C-885.R2	C-885.R3
Function	19" chassis for C-885 PIMotionMaster	19" chassis for C-885 PIMotionMaster
Number of card slots	1 C-885.Mx module (required) 20 controller modules (max.)	1 C-885.Mx module (required) 19 controller modules (max.)
Dimensions	Without modules: 482.6 mm × 132.55 mm × 265.3 mm With modules: 482.6 mm × 132.55 mm × 278.55 mm	Without modules: 482.6 mm × 132.55 mm × 265.3 mm With modules: 482.6 mm × 132.55 mm × 278.55 mm
Operating voltage	24 V DC from external power adapter*	24 V DC from external power adapter* also optional: 48 V DC from external power adapter*
Supply voltage for controller modules	24 V DC	24 V DC / 48 V DC
Current consumption, max.	32 A	32 A
Mass without modules	2.9 kg	5.08 kg
Operating temperature range	10 to 40 °C	10 to 40 °C

	C-885.M1
Function	Digital processor and interface module for C-885 PIMotionMaster
Communication interfaces	Ethernet, USB
Command set	PI General Command Set (GCS)
User software	PIMikroMove
Application programming interfaces	API for C / C++ / C# / VB.NET / MATLAB / Python, drivers for NI LabVIEW
Indicators	LEDs for Power, Error
Operating temperature range	10 to 40°C
Mass	132 g
Dimensions	186.42 mm × 128.4 mm (3 RU) × 19.98 mm (4 HP)

* External power adapter not included in the scope of delivery

Download datasheet downloads

Datasheet

Version / Date

2020-12-15

pdf - 221 KB

Version / Date

2020-12-15

pdf - 222 KB

Version / Date

2021-01-26

pdf - 264 KB

Download

Documentation

C-867.1U Piezo Motor Controller / Driver, Networkable, 1 Channel, for PILine® Systems with Sub-D Connector(s)

Version / Date

2.3.0 2023-06-16

pdf - 8 MB

Version / Date

2.3.0 2023-06-16

pdf - 8 MB

Documentation

C-891 PIMag® Motor Controller

Version / Date

2021-01-13

pdf - 1 MB

Version / Date

2021-01-13

pdf - 1 MB

Documentation

C-891 PIMag® Motion Controller

Version / Date

2020-06-30

pdf - 4 MB

English

Documentation

C-885 PIMotionMaster Modular Multi-Axis Controller

Version / Date

2023-08-17

pdf - 5 MB

Version / Date

2023-08-17

pdf - 5 MB

Documentation

C-663.12C885 Motion Controller Module for Stepper Motors, for C-885 PIMotionMaster

Version / Date

20201-01-13

pdf - 685 KB

Version / Date

20201-01-13

pdf - 690 KB

Documentation

C-663.12 Mercury Step Stepper Motor Controller

Version / Date

2.0.0 2024-10-24

pdf - 6 MB

Version / Date

2.0.0 2024-10-24

pdf - 6 MB

Documentation

C-863.20C885 Motion Controller Module for DC Motors, for C-885 PIMotionMaster

Version / Date

2021-01-13

pdf - 474 KB

Version / Date

2021-01-13

pdf - 463 KB

Documentation

C-863.11 Mercury DC Motor Controller

Version / Date

2013-03-21

pdf - 3 MB

Version / Date

2013-03-21

pdf - 3 MB

Documentation

C-867.10C885 Motion Controller Module for PILine®, for C-885 PIMotionMaster

Version / Date

2021-01-13

pdf - 512 KB

Version / Date

2021-01-13

pdf - 509 KB

Documentation

E-861.11C885 Motion Controller Module for NEXACT®, for C-885 PIMotionMaster

Version / Date

2021-01-13

pdf - 901 KB

Version / Date

2021-01-13

pdf - 908 KB

Documentation

E-861 NEXACT® Controller

Version / Date

2023-02-28

pdf - 6 MB

English

Documentation

E-873.10C885 Motion Controller Module for Q-Motion®, for C-885 PIMotionMaster

Version / Date

2021-01-13

pdf - 733 KB

Version / Date

2021-01-13

pdf - 760 KB

Documentation

E-873.1AT Q-Motion® Controller

Version / Date

2024-10-24

pdf - 6 MB

Version / Date

2024-10-24

pdf - 6 MB

3D Models

C-885.Rx 3D Model

zip - 40 MB

Software Files

Version / Date

2.9.0.5, 2024-10

zip - 801 MB

Software Files

Version / Date

2.9.0.5, 2024-10

pdf - 322 KB

English

General Software Documentation

Implementing a C-887 PI Controller in TwinCAT 3.1

Version / Date

2024-06-05

pdf - 1 MB

General Software Documentation

PI GCS2 Driver Library for NI LabVIEW

Version / Date

7.0.1 2021-03-03

pdf - 3 MB

English

General Software Documentation

Updating PI Software with PIUpdateFinder

Version / Date

2024-06-04

pdf - 416 KB

Version / Date

2024-06-04

pdf - 422 KB

General Software Documentation

PI GCS DLL

Version / Date

2024-06-07

pdf - 3 MB

English

General Software Documentation

PI MATLAB Driver GCS 2.0

Version / Date

1.2.0 2019-03-22

pdf - 1 MB

Version / Date

1.2.0 2019-03-22

pdf - 1 MB

General Software Documentation

GCS Array Data Format

Version / Date

1.2.1

pdf - 153 KB

English

General Software Documentation

PIMikroMove

Version / Date

2024-10-23

pdf - 6 MB

English

General Software Documentation

PI Software on ARM-Based Platforms

Version / Date

2023-05-08

pdf - 276 KB

quote / order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

C-885.M1

Digital processor and interface module for PIMotionMaster , with TCP/IP and USB interface

Add to quote list Remove from quote list

C-885.R1

9.5" rack for PIMotionMaster , supplies up to 4 controller modules with 24 V operating voltage

Add to quote list Remove from quote list

C-885.R2

19'' rack for PIMotionMaster , supplies up to 20 controller modules with 24 V operating voltage

Add to quote list Remove from quote list

C-885.R3

19'' rack for PIMotionMaster , supplies up to 19 controller modules with 24 V / 48 V operating voltage, preconfigured for 24 V operation of all modules

Add to quote list Remove from quote list

C-885.R4

9.5" rack for PIMotionMaster , supplies up to 8 controller modules with 24 V operating voltage

Add to quote list Remove from quote list

C-885.PS

Wide input range power supply for PIMotionMaster, 24 V DC, 10 A

Add to quote list Remove from quote list

C-885.ID

Digital interface module for PIMotionMaster

Add to quote list Remove from quote list

C-885.AA01

Adapter board from C-891.11C885 to C-885.iD in PIMotionMaster
