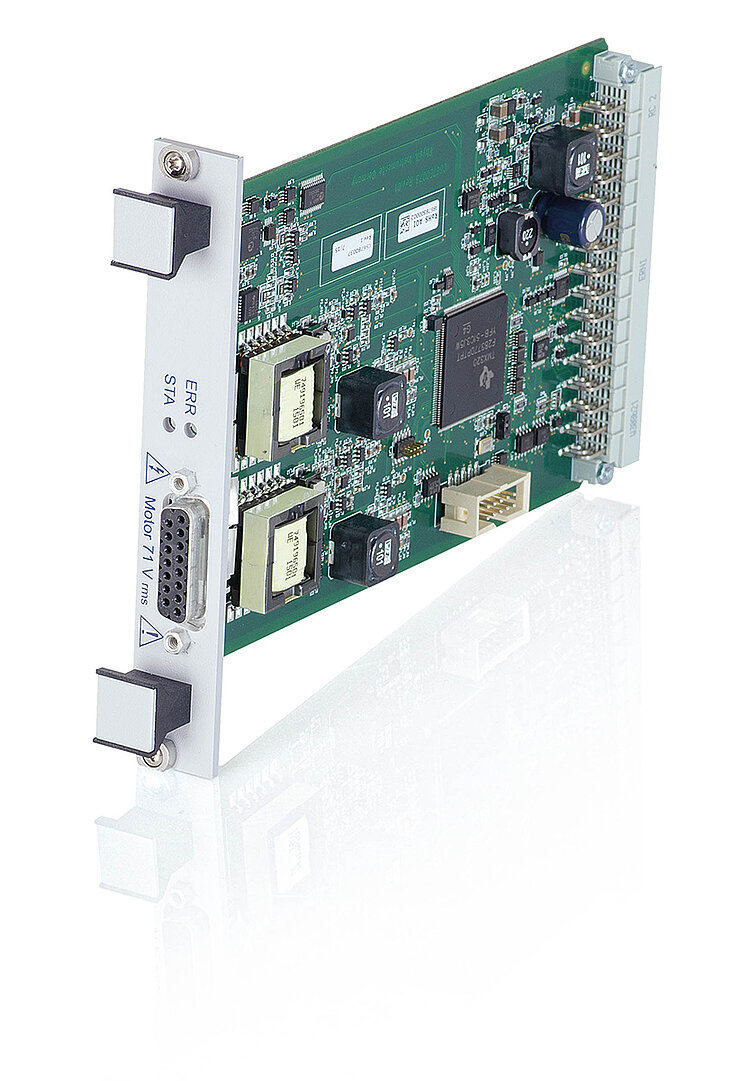

Servo controller for PILine® ultrasonic piezo motors, 1 axis
Technology
Special PID controller for ultrasonic piezo motors. Power amplifier for PILine® ultrasonic piezo motors and positioners with performance class 2 piezo motors. Dynamic frequency control for optimum drive control.
Differential signal transmission for digital (A/B) encoder signals. Support for the BiSS interface for absolute encoders. TTL inputs for limit and reference switches.
Functionality and software
Powerful macro programming language. Nonvolatile macro memory, e.g., for stand-alone operation with autostart macro. Data recorder. ID chip detection for fast startup. PID controller, parameters modifiable during operation.
Extensive software support, e.g., for NI LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.
Installation and operation
Plug-and-play installation in the C-885 PIMotionMaster: Can be inserted in any free slot. Automatic detection and external communication by the processor and interface module of the C-885. Expandable by optional digital inputs and outputs. Power supply via the power adapter of the C-885.
