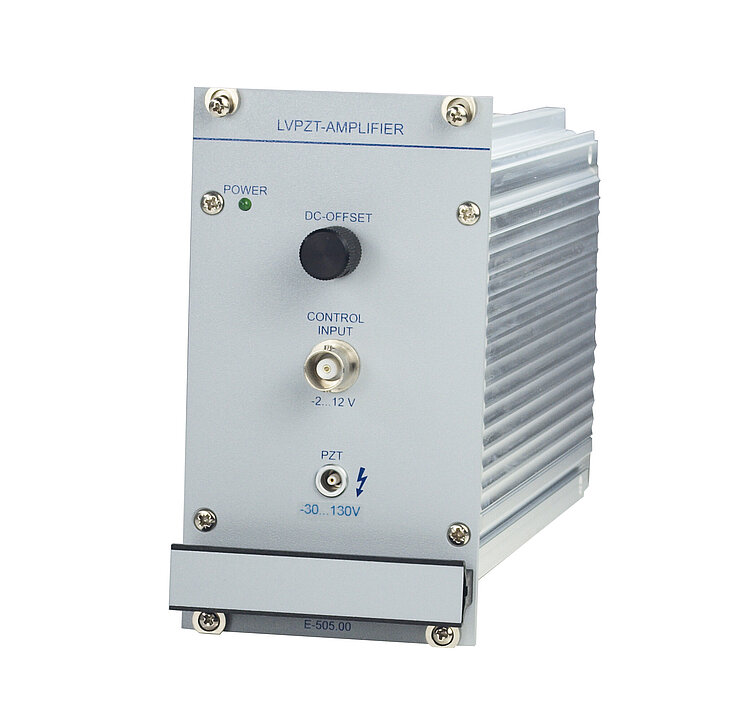

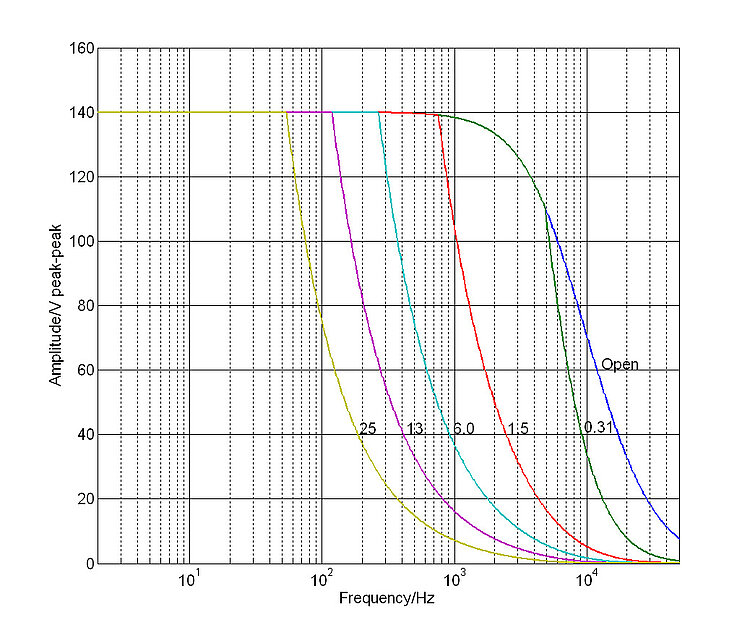

E-505 Piezo Amplifier Module

Function

Power amplifier

Power amplifier for switching applications*

Offset voltage source for tip/tilt systems

Channels

1

1

1

Input voltage range

-2 to +12 V

-2 to +12 V

-

Output voltage

-30 to +130 V

-30 to +130 V

100 V

Peak current

2 A (<3 ms)

10 A (<200 µs)

2 A (<5 ms)

Average output current

215 mA

215 mA

300 mA

Current limitation

Short-circuit proof

Short-circuit proof

Short-circuit proof

Noise, 0 to 100 kHz

<0.6 mVrms

1.0 mVrms

<0.7 mVrms

Voltage gain

10 ±0.1

10 ±0.1

-

Input impedance

1 MΩ / 1 nF

1 MΩ / 1 nF

-

Piezo connection socket

LEMO ERA.00.250.CTL

LEMO ERA.00.250.CTL

LEMO ERA.00.250.CTL

Analog input

BNC

BNC

-

DC offset setting

10-turn potentiometer, adds 0 to 10 V to the input voltage

10-turn potentiometer, adds 0 to 10 V to the input voltage

-

Operating temperature range

5 to 50 °C

5 to 50 °C

5 to 50 °C

Overheat protection

Deactivation at 85°C

Deactivation at 85°C

Deactivation at 85°C

Dimensions

14 HP / 3 RU

14 HP / 3 RU

14 HP / 3 RU

Mass

0.9 kg

0.9 kg

0.9 kg

Operating voltage

E-500 system

E-500 system

E-500 system

Max. power consumption

55 W

55 W

55 W
