Multi-Axis Positioning Stages: What is the Difference between Parallel and Stacked Positioning Systems?

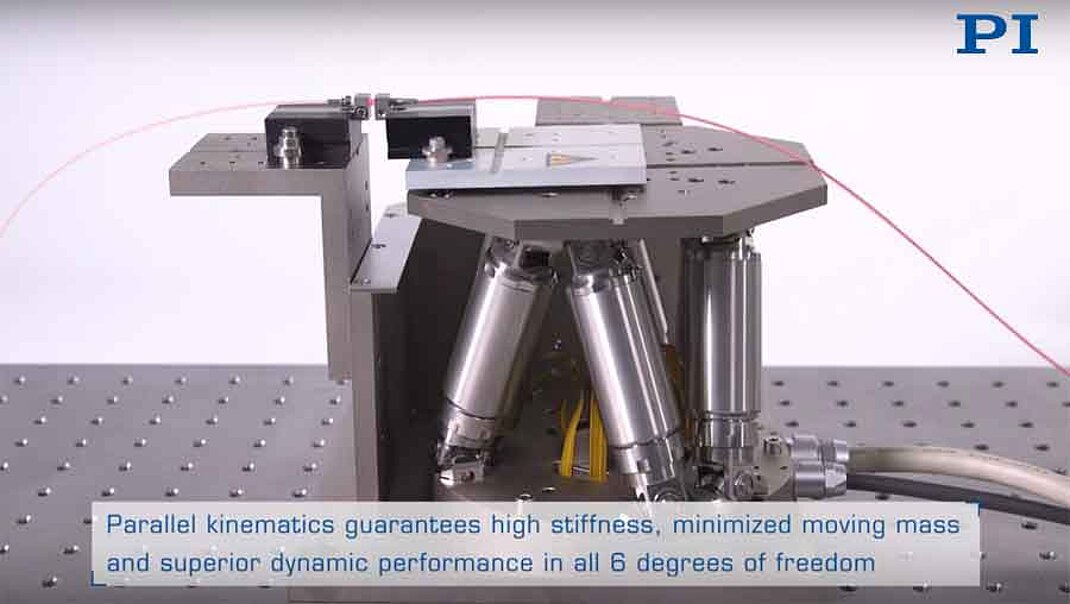

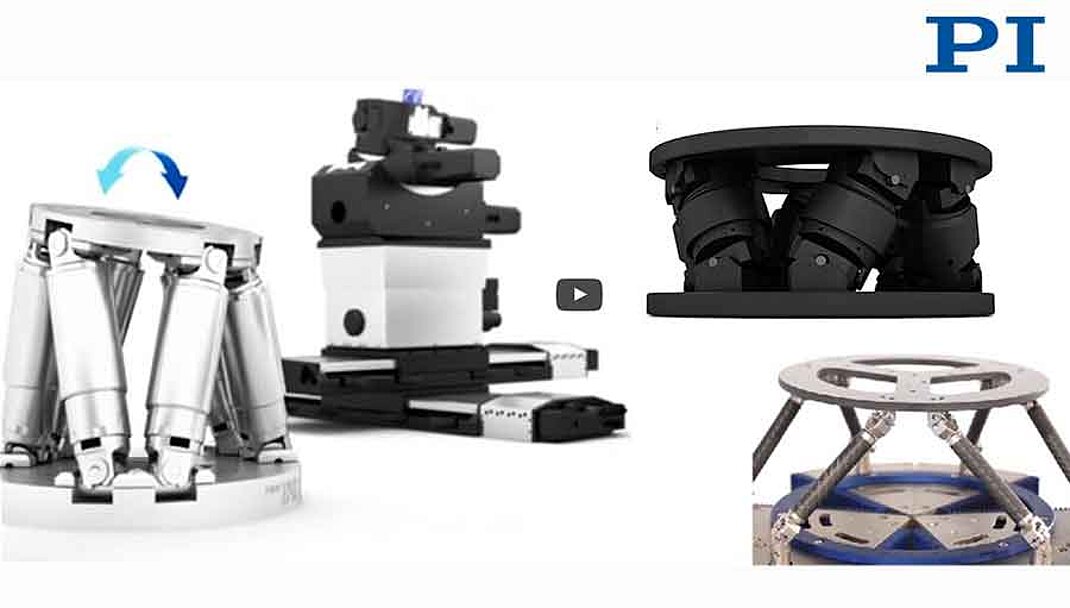

When faced with a motion control application that requires a multi-axis positioning system, users often simply stack individual motorized stages, and in fact that is a fine approach for assemblies of just a few axes. But as applications become more complex, so do the equivalent stacks-of-stages, including cable management, arrangements of brackets etc. and very real and practical considerations begin to come into play. When it comes to situations where a high-performance multi-axis positioning system with 4, 5, and 6-axis motorized stages is required, the traditional approach of stacking individual single-axis stages should be questioned and compared carefully with an inherent 6-axis stage design based on parallel kinematics.

• Inconsistent dynamics. The bottom stage in a serial kinematics multi-axis stage stack carries the mass of the entire stack, and so on up to the top stage, which carries only the application load. So tuning is a laborious, axis-by-axis process, with different settings for each axis… and consequently different responsiveness.

• Inflexible rotation-centerpoint placement. Stacked multi-axis positioning stages place the center of their tip/tilt and rotation motions at the geometric centers of each rotation-stage and goniometer bearing. These can sometimes be arranged to coincide at a desired point in space (for example, at the focal point of a lens) via custom adaptor plates and fixtures, but this takes time and effort and is inflexible should application needs change. And significant changes can alter the dynamics of the stack, necessitating a re-tuning of each axis… again.
• Cabling. Cables are a fact of life in motion control, and managing them deserves more attention than it often gets. To begin, cables can be a conduit for vibration that can impact an entire application setup in un-obvious ways. Even one’s choice of draping the cables off an isolation platform can influence an application’s overall stability and performance in profound ways. As a stage moves, any cable being dragged along can contribute to parasitic motions and other errors. Stiff cables can do so even if arranged in a non-dragging manner. Cables can break and snag and come loose, contributing to premature failures that can be hard to diagnose. And generally, these problems scale with the number of axes in a user-stacked system. (Manufactured stacks sometimes benefit from integrated cable management.)
• Central aperture.  Many applications–especially in optics–benefit from transmissive construction of the motion stack.  This is difficult or impossible to achieve with a stacked structure of many axes.
• Size, weight and fragility.  Simply stated, stacks can be substantial in height and mass.  And since the bottom stages bear the burden of the entire tall stack, their bearings are vulnerable to brinelling and other damage from inadvertent forces.  Besides inviting damage from elbow-knocks when set up, this often necessitates disassembly for shipping, adding cost and hassle and introducing variability when reassembled.
• Orthogonality and parasitic errors.  Stacked axes interact in complicated ways; for example, runout in the X axis is seen as unwanted motion in the Y and Z axes; angular deviation of an axis similarly imparts motion in the travel-directions of the other axes, with magnitude proportional to the distance to the moving axis.  And in stacks, that multiplicative lever-arm can be large.
